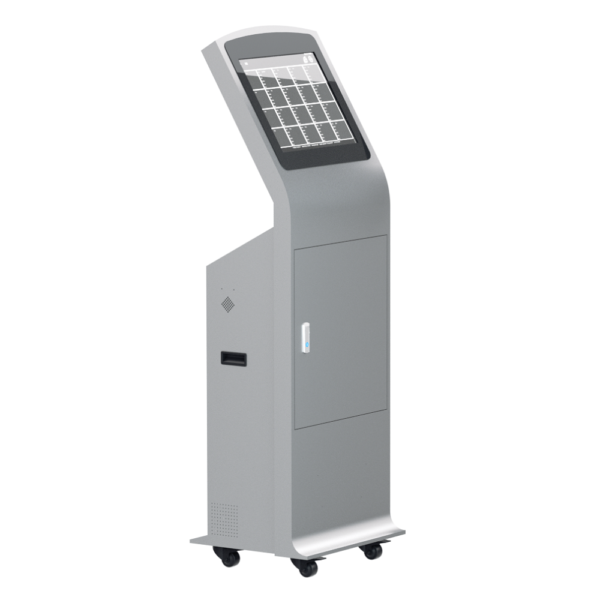

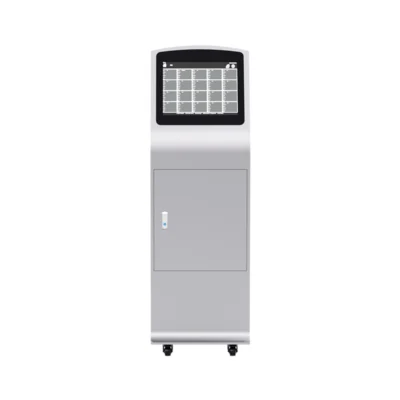

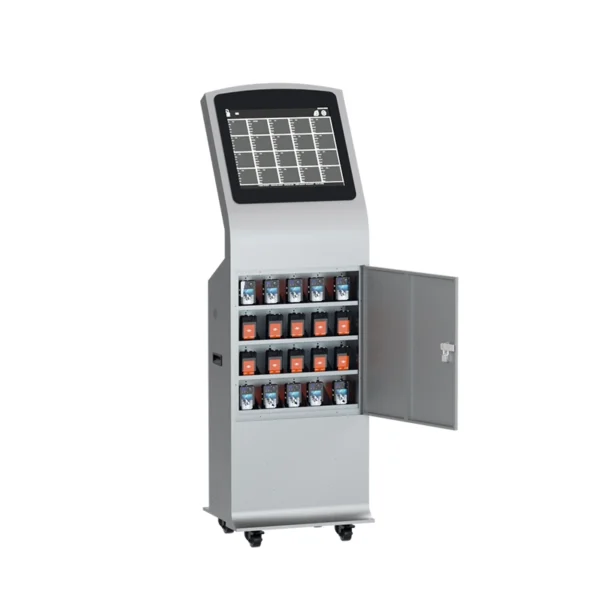

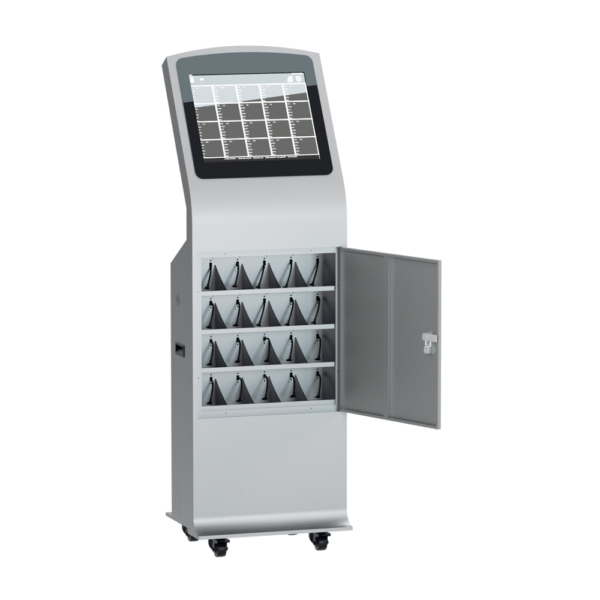

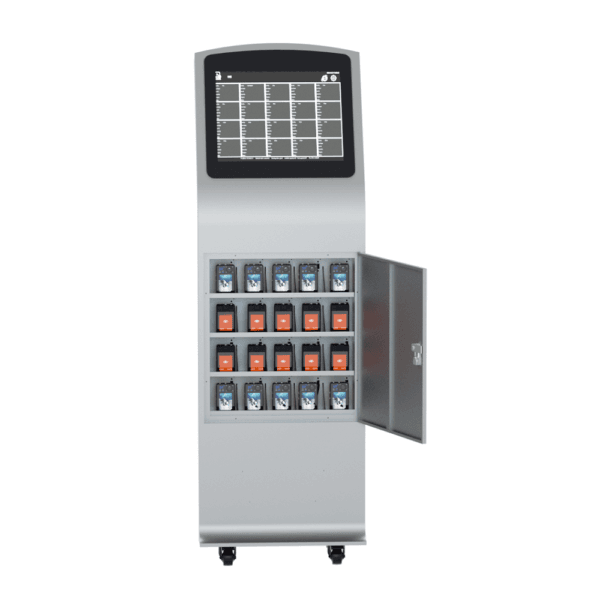

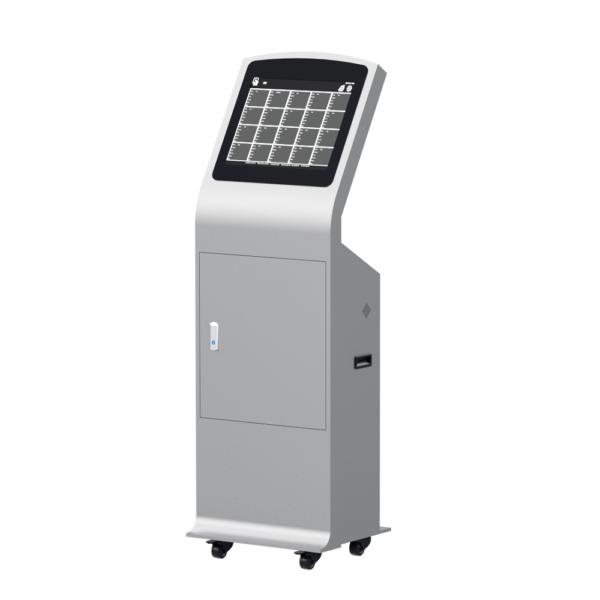

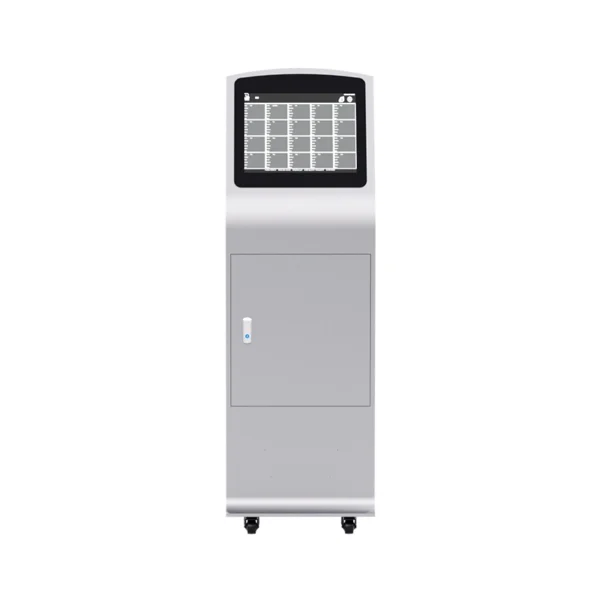

High-Capacity Body Worn Camera Hub Station

Other Recommendations For Your Business

Related products

SKU CW-CA-DS615007 Categories ,
Price Information：

Quantity(pcs)Unit Price($)Clarify
1-4991412.5After order confirmation, 0 samples are free(excluding postage)
500-19991400.0After order confirmation, 0 samples are free(excluding postage)
2000-29991375.0After order confirmation, 0 samples are free(excluding postage)
3000-50001337.5After order confirmation, 0 samples are free(excluding postage)
Product Advantages：

ProductDescription:

Customize your station and management softwaretoperfectly suit your specificbody camera needs.At ShenzhenYingdun Technology Co.,Ltd.,we offer a wide range of options to ensure you have the ideal solution foryour requirements.
IntroducingourChargingandDataTransferHubforBodyCameras,aversatileandhigh-capacitywearabledockthatprovidessecurestorage,rapidcharging,andefficientdata transfer.With this hub,you caneasily manage andmaintainyourbody cameraswith ease.Our Camera Unit Docking Station is designed to accommodateup to 20body cameras,making it perfect forlarge-scale operations.The 24-port hub station ensures that all your cameras are charged and ready to go wheneveryou need them. TheWall Hanging Data Station offers a convenient and space-saving solution, allowing you to mount it on any wall for easy access. Its multi-port docking hub enables simultaneouscharging anddatatransfer,savingyoutimeandeffort.

With ourBody Camera Charging Station,you can ensure that your cameras are always powered up and readyfor action.The high-capacity charging station provides a reliable  and efficient charging solution,soyou never have to worry about running out of battery. WhetheryouneedaChargingHubforBodyCameras,aDataTransferTerminalStation,oraDockingStationforWearables,wehavetheperfectsolutionforyou.Our multipurpose hub is designed to meet all your bodycamera needs.

Key parameters：
NameValue
HDMI Format1080P
System software
Operating systemWin 7 64-bit ( optional win10 64-bit )
DatabaseMysql
Acquisition softwareMobile Law Enforcement Electronic Evidence Management System
Product advantage1. Wall-mounted installation saves space. 2.B/S architecture, support distributed download. 3.Support remote download of recorder data. 4.Automatic collection, automatic deletion. 5. Automatic charging, unattended . 6. Standard quick installation hanger 400*400 holes. 7.7*24*365 operation around the clock
TrademarkOEM
Production Capacity5000PCS/Month
Certification CCC
NameValue
Place of originGuangdong China
Model numberHLN20
Product nameCharging and Data Transfer Hub for Body Cameras
Hardware Configuration
Display components19-inch LCD screen, physical resolution 1280*1024
Touch componentsFour-point infrared touch screen
Main chipsetIntel i5 chipset,optional other Intel series processors
Memory Capacity4G DDR 1600/1333/1066 MHz,( 8G optional )
System hard drive60G SSD
Storage capacity
Acquisition interfaceMini USB *20 ports (optional usb Micro/TypeC port )
16T storage(1T,2T,3T,6T,8T,12T,20T,32-256T)
Application function/Collection management
1Recorder registration and binding management
2Support Collection Process break point continuation transmission
3Dynamic display of acqusition progress and charging status
4The acquisition device corresponds to the screen display position one by one
5The equipment automatically collects and the number of simultaneous collections can be customized
6Comply with authentication rules forpublic safety industry standard interfaces
Application function/data processing
1Uncompressed original image quality of video file
2Automatic classification (by file type, resolution or date)
3Automatically upload to the specified server
4Upload policy configurable (time period, target address, file type, network bandwidth, etc.)
5Automatically calibrate the recorder,automaticallyverify the acquisition completion status,and automatically clear the data
Application function/Storage management
1Storage policy management(storage path,storage file type,compression method,etc)
2Storage space management (cleaning manner,early warning manner, expansion manner,backup manner, etc.)
3Storage status display
4Database scheduled backup
5Download and view distributed evidence
Application function/Data SecurityUnauthorized user has no data operation permission
Application function/data synchronizationActive + passive interaction with management platform, two-way database synchronization fault tolerance mechanism
Application function/authoritymanagementUnlimited hierarchical permissions recursive management
Application function/Evidence judgmentImportant Evidence Sharing,Research and Judgment
Application function/work assessmentPersonnel assessment,unit assessment
Application function/site managementMulti-level work station site management
Application function/logmanagementOperational logging
Application function/compatibilitySupport the connection of recorder devices of different brands and models that meet the of the Ministry of Public Security (GA/T947-2015)standards
Host interface
Switch buttonPhysical button * 1
NetworkInterfaceRJ45*1
Data interfaceUSB-Afemale*2
Physical properties
Power supplyAC IN:220V;50Hz over voltage protection, over current protection, over power protection, short circuit protection
Power consumption≤400W
Operating temperature-20°℃~60°℃
Working humidity<90%
Product size (mm)Width 500mm*Height 500mm*Depth 120mm
Packing size (mm)Woodenbox:580mm*1710mm*570mm,carton:610mm*1650mm*520mm
Net weight of productAbout 55kg
Product gross weightAbout 65kg carton (about 75kg wooden box)
QualityAssurance
Shell materialAll metal shell, anti-static, anti-magnetic field, anti-strong electric field interference
Mandatory authenticationChina Compulsory Certification of Electrical Products(3C)
Environmentally friendly StandardsAll components and packaging accessories comply with international environmental protection standards
Transport PackageBlackBoxand Outer Carton
NameValue
MOQ3 Pcs
FobYantian port Shekou Port DaChan Bay
PaymentT/T
Selling UnitsSingle package
Single package size:610mm*1650mm*520mm
Gross Weight75.000kg
Transport PackageGiftbox Package or OEM Package
Lead Time21- 500pcs/20days,501- 5000pcs/30days,> 5000/To be negotiated
